Election officials and machine vendors love to make the claim that their systems are “air-gapped” and “not connected to the internet”. Such assertions are intended to give the general public a false sense of security regarding the use of electronic voting systems. When pressed by technically savvy investigators, these same individuals will often begrudgingly admit that their election systems do have remote connections but these connections are secured via Virtual Private Networks (VPNs).
Use of VPN's in Election Systems
Election infrastructure utilizes VPNs in four primary documented configurations:
- EMS-to-County Network Links: Workstations connect to internal county networks. If any device on that network is internet-connected, the EMS is effectively exposed to lateral movement.
- State Voter Registration Access: Local workstations connect to statewide databases for real-time updates and queries.

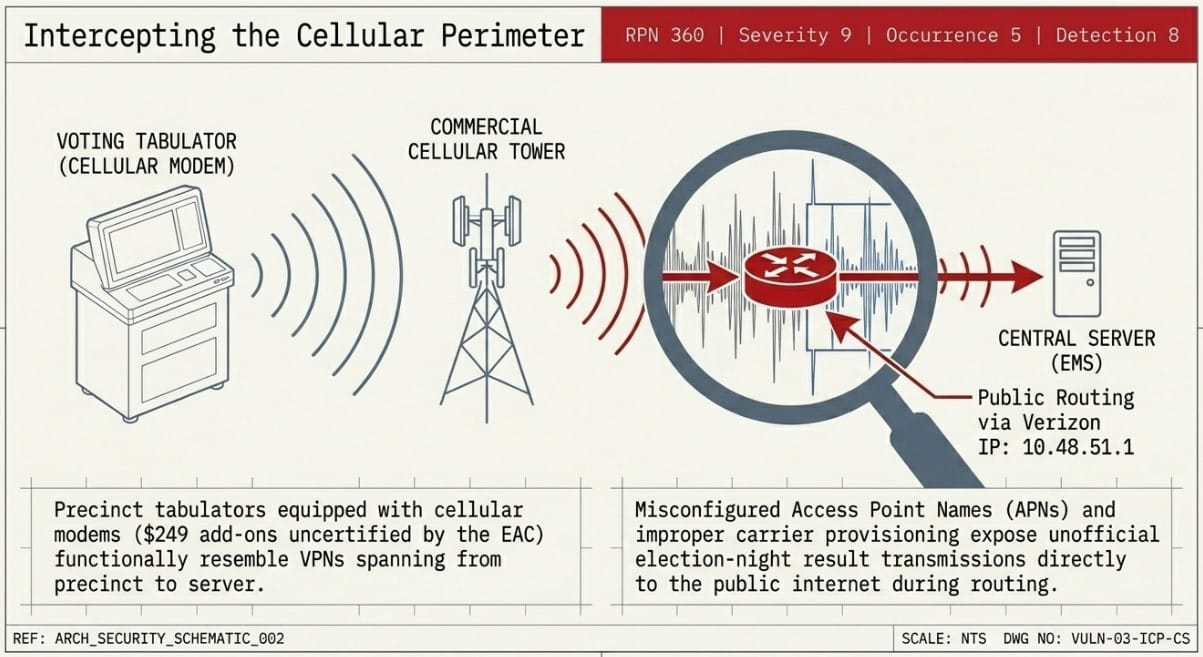

- Cellular Modem Transmission: Precinct tabulators use cellular “mobile private networks” to transmit unofficial election-night results. While described as FIPS-compliant tunnels, they function as VPNs spanning from the precinct to a central server.
- Vendor Remote Access: Election vendors (such as ES&S) have historically used tools like pcAnywhere for remote maintenance on EMS workstations.
NIST and the Center for Internet Security (CIS) classify these connected technologies as having the highest risk profile. NIST warns that an EMS connected to any network device with internet access is an exploitable path for delivering malware to voting machine memory cards.
Failure Modes and Effects Analysis
Since election systems have been designated as “critical infrastructure” by the federal government, enhanced security analysis rigor is warranted. A typical analytical method applied by engineers to critical systems is that of a Failure Modes and Effects Analysis (FMEA).
A FMEA is a structured risk assessment methodology used to identify discrete potential failures within a system and map mitigating controls to each threat. In an FMEA, every identified failure mode is evaluated across three primary dimensions, which are typically scored on a scale from 1 to 10:
- Severity (S): The potential impact or consequence if the failure occurs, ranging from minor operational disruptions to catastrophic damage.
- Occurrence (O): The likelihood that the specific failure will materialize.
- Detection (D): The difficulty of detecting the failure before it causes harm.

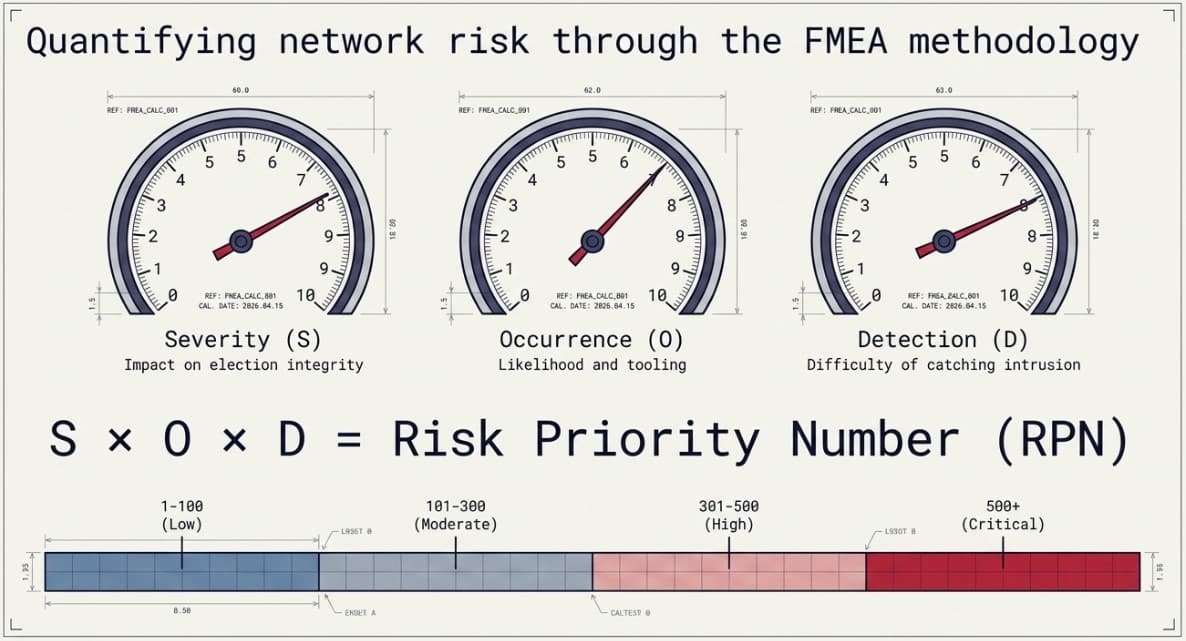

Once these dimensions are scored, the methodology uses them to calculate a Risk Priority Number (RPN) by multiplying the three factors together (RPN = S × O × D).
This calculation provides a standardized way to evaluate and prioritize risks. For example, an RPN between 1 and 100 is considered a low priority, while an RPN over 500 designates a critical threat that requires immediate remediation
The following table details the lifecycle failure modes for VPNs applied to election system management.
# | Component | Failure Mode | Potential Effect | S | O | D | RPN |
|---|---|---|---|---|---|---|---|
1 | VPN Appliance | Unpatched CVE Exploitation | Remote code execution; access to EMS/Voter DB | 9 | 8 | 7 | 504 |
2 | Credential Mgmt | Stolen/Weak Credentials | Unauthorized network access as an official | 9 | 7 | 7 | 441 |
3 | Vendor Access | Unauthorized Remote Access | Covert modification of ballot definitions | 10 | 5 | 8 | 400 |
4 | Cellular/Private Net | Misconfiguration | Results intercepted/manipulated in transit | 9 | 5 | 8 | 360 |
5 | Split Tunneling | Simultaneous Internet Path | Malware exfiltrates data via unmonitored path | 8 | 6 | 8 | 384 |
6 | MFA Absence | Single-factor Auth Bypass | Attacker authenticates as legitimate official | 9 | 6 | 6 | 324 |
7 | Logging/Monitor | Logs not retained/reviewed | Post-incident forensics impossible | 8 | 7 | 9 | 504 |
8 | Certificate Mgmt | Expired/Self-signed Certs | MITM attack intercepts election traffic | 8 | 4 | 6 | 192 |
9 | Lateral Movement | Pivot from County Net to EMS | Ballot programming or result data altered | 10 | 5 | 7 | 350 |
10 | Endpoint Health | Compromised Workstation | Malware traverses VPN tunnel to the EMS | 10 | 5 | 7 | 350 |
11 | Insider Threat | Authorized User Abuse | Unauthorized configuration changes | 9 | 3 | 8 | 216 |
12 | DNS Hijacking | Malicious Name Resolution | Traffic redirected to spoofed EMS/harvesting | 7 | 4 | 7 | 196 |
13 | Service Availability | VPN Outage/DDoS | Delayed results reporting; eroded confidence | 6 | 5 | 4 | 120 |
14 | Supply Chain | Trojanized Firmware | Persistent covert access by state actors | 10 | 3 | 10 | 300 |

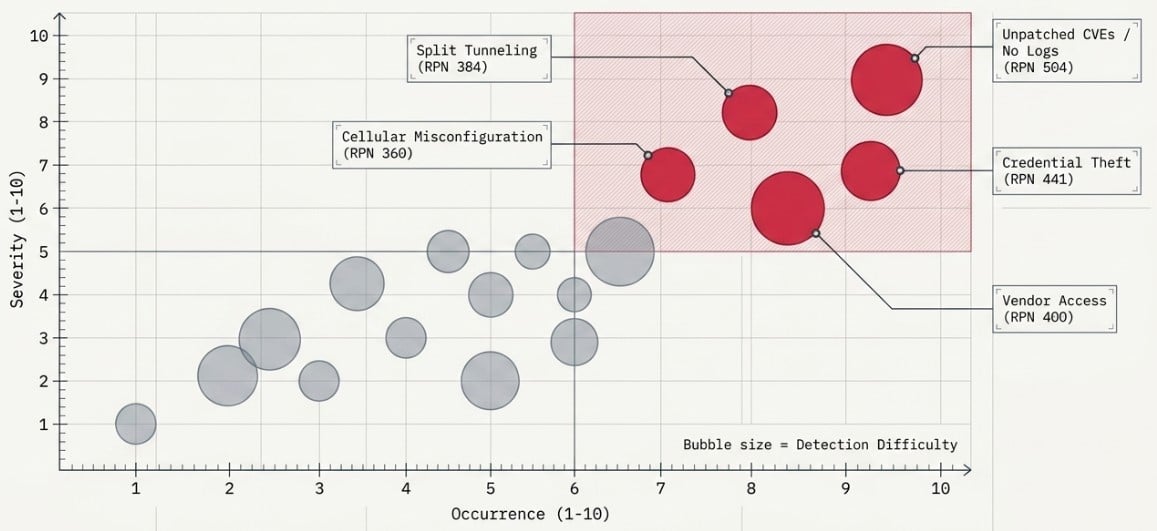

Critical Risks
FMEA risks of ~400 or higher are typically deemed “critical risks”. Election systems using VPN connections feature five Critical Risks worthy of highlighting.

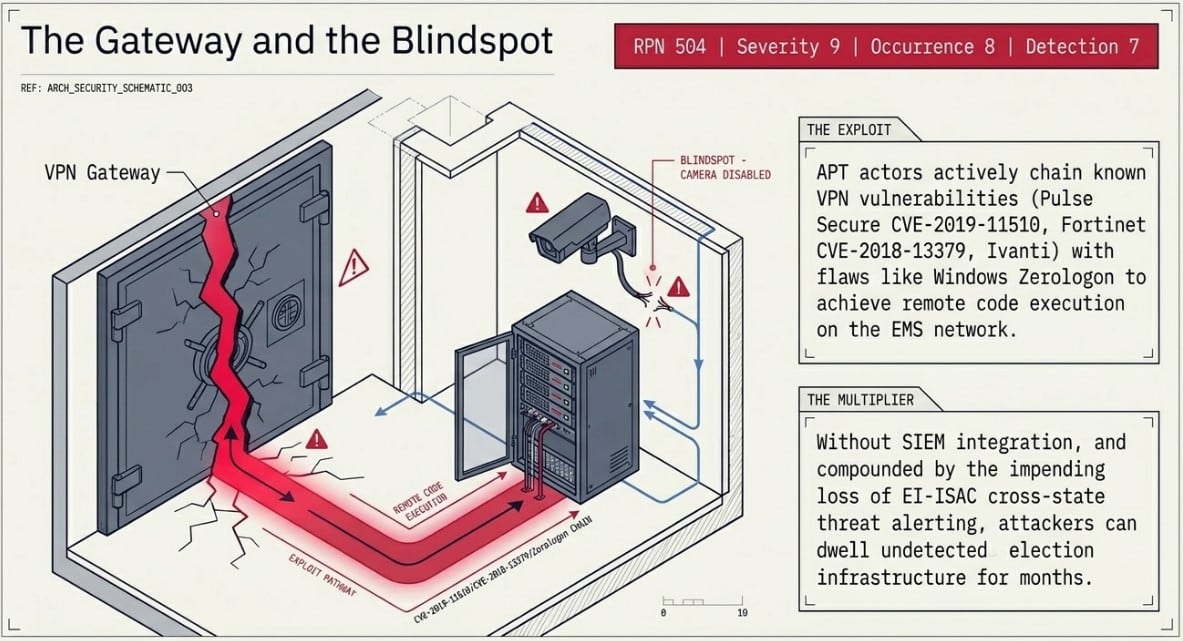

CRITICAL RISK 1: CVE Exploitation and Monitoring (RPN 504)
Advanced Persistent Threat (APT) groups actively “chain” VPN vulnerabilities (such as those in Pulse Secure, Fortinet, and Ivanti) with Windows flaws like Zerologon (CVE-2020-1472). These chains allow attackers to compromise Active Directory and pivot to election-support systems. The high detection score (9) is driven by the termination of EI-ISAC funding in 2026, which removes the centralized threat alerting necessary for jurisdictions to see active campaigns.

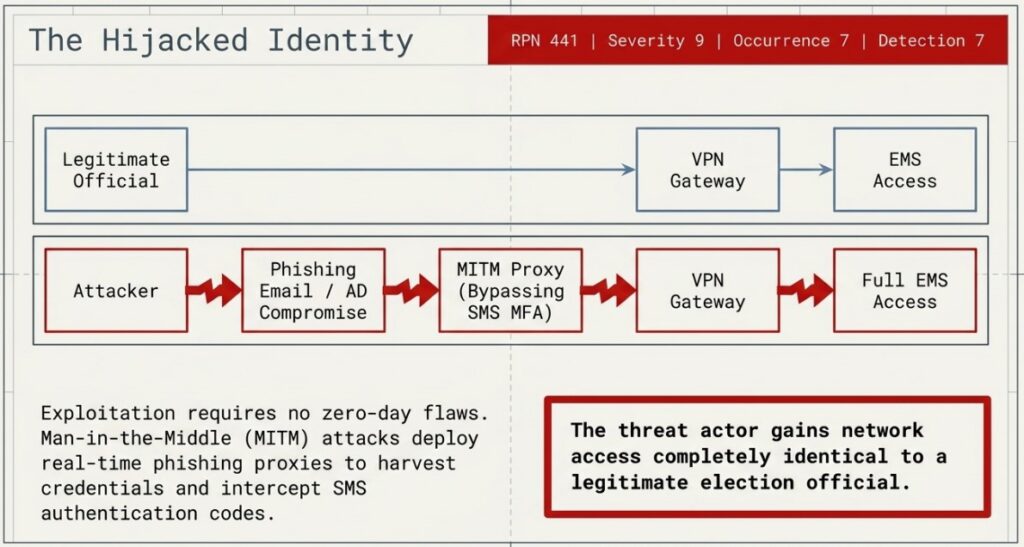

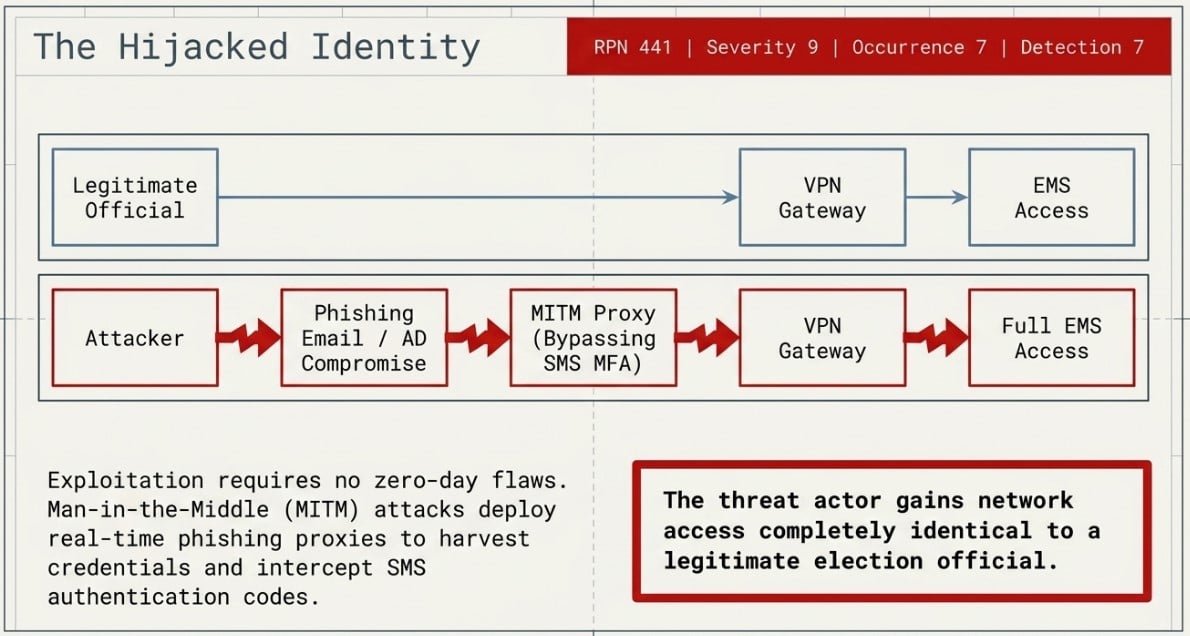

CRITICAL RISK 2: Credential Theft (RPN 441)
Credential-based attacks do not require sophisticated exploits. Attackers harvest credentials via phishing or purchase them on criminal markets. In 2024, Man-in-the-Middle (MITM) attacks accounted for 23% of identity-related incidents, often bypassing standard MFA through real-time phishing proxies.

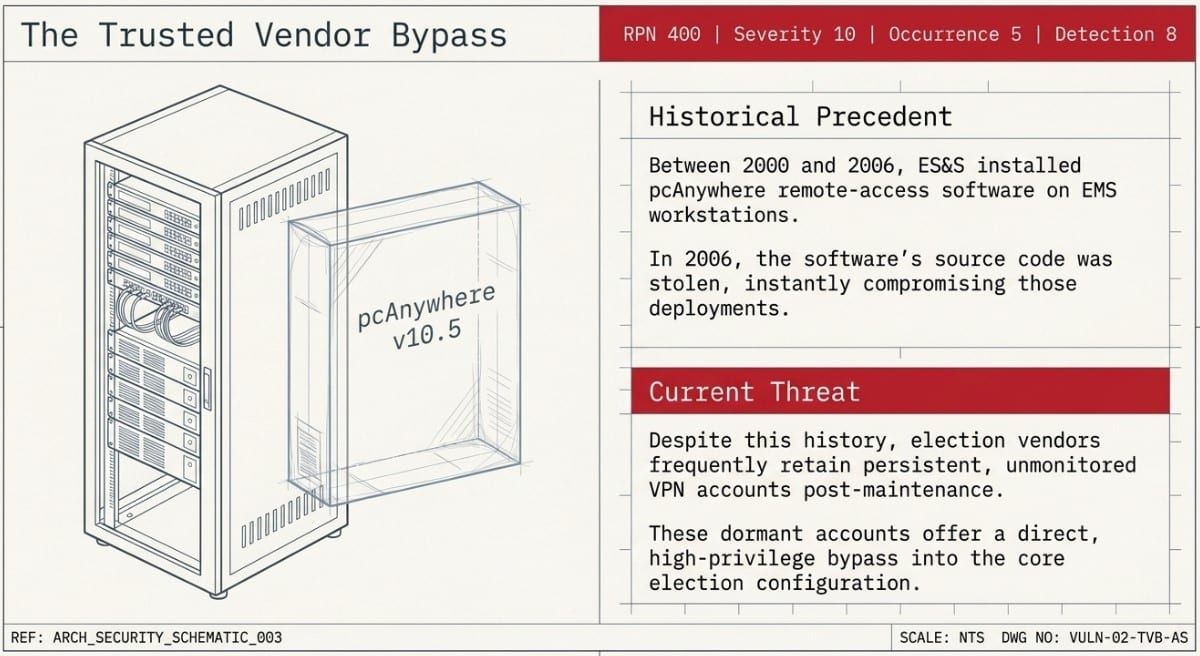

CRITICAL RISK 3: Vendor Remote Access (RPN 400)
Historical precedents highlight this risk; ES&S admitted to installing pcAnywhere on EMS workstations sold between 2000 and 2006. The subsequent theft of that software’s source code compromised those deployments. Modern risks include persistent vendor accounts that are not deprovisioned after maintenance.

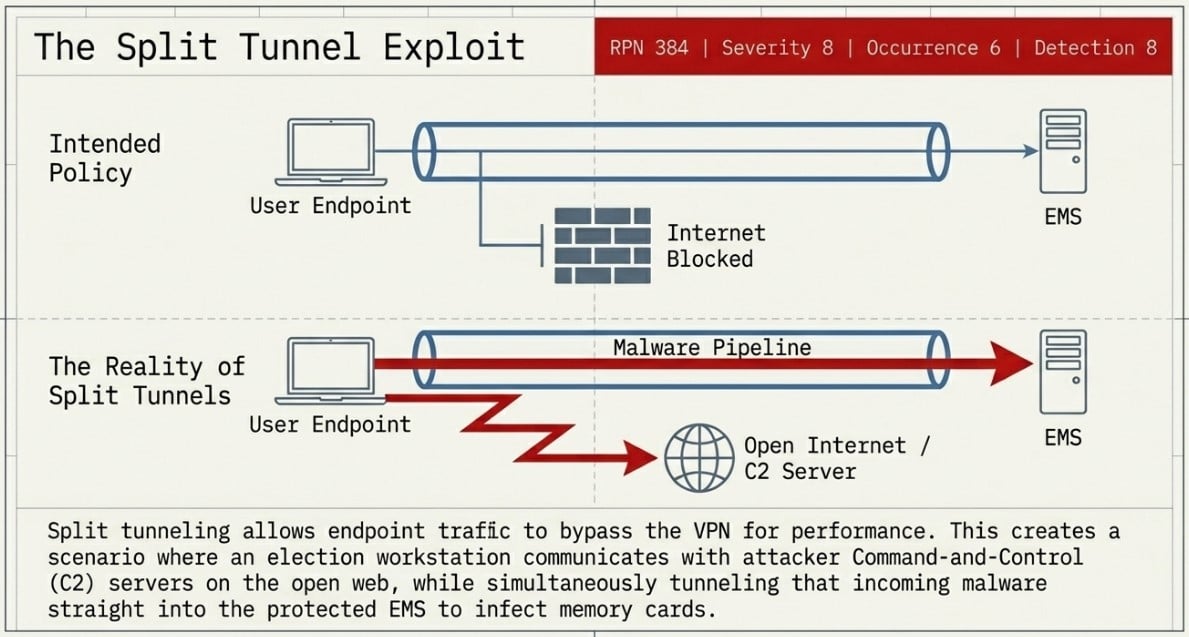

CRTICAL RISK 4: Split Tunneling (RPN 384)
Split tunneling allows an election workstation to maintain a simultaneous connection to the open internet and the protected EMS. This creates an unmonitored “backdoor” where malware can be downloaded via the internet path and then traverse the VPN tunnel to reach the EMS and infect voting machine memory cards.
CRITICAL RISK 5: Lateral Movement and Endpoint Compromise (RPN 350)
NIST and the National Academies of Sciences have identified electronic ballot alteration as a credible threat when voting systems are networked. If an EMS is connected to a county network that has even one internet-facing device, the EMS is effectively connected to the internet.

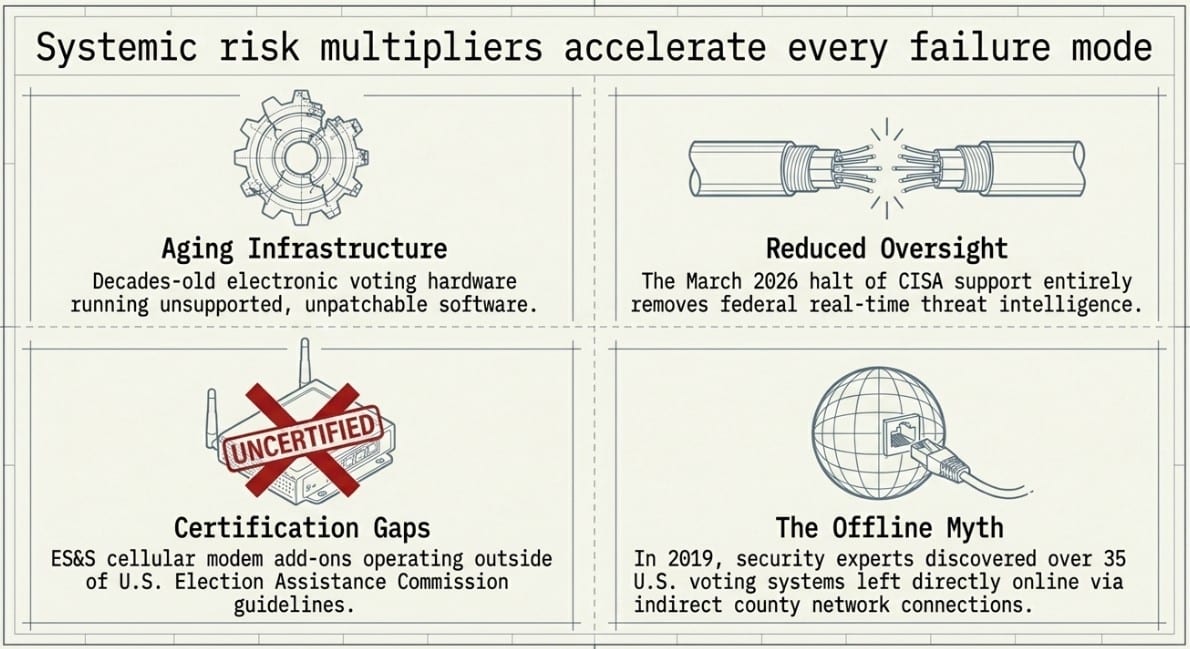

Risk Multipliers
The overall risk posture is elevated by several systemic issues:
- Aging Infrastructure: Systems are frequently 10+ years old, running unsupported software that cannot be patched against modern CVEs.
- Reduced Oversight: The cessation of CISA election support and EI-ISAC funding leaves local officials without real-time threat intelligence.
- Certification Gaps: Research has identified over 35 U.S. voting systems online in 2019 despite claims of air-gapping. Furthermore, some cellular modem add-ons (such as those from ES&S) have been documented as failing to meet U.S. Election Assistance Commission certification guidelines.
Conclusion
VPN connections in election infrastructure represent a concentrated, well-documented attack surface that has been actively exploited against government networks by nation-state APT groups using publicly available tooling. The five highest-RPN failure modes — unpatched CVE exploitation, stolen credentials, vendor remote access abuse, cellular modem misconfiguration, and split tunneling — are all technically remediable through known controls. The primary barrier is implementation discipline at the county and state level, which has become harder to enforce with the elimination of federal election-security support infrastructure. For election integrity investigators and legal proceedings, the FMEA framework provides a structured methodology for establishing that identified VPN configurations represent objectively documentable deviations from reasonable security practice — independent of whether exploitation can be proven in any specific election.
